80mm Refrigerated Truck Body Panels with 2mm Fiberglass Skins

80mm Refrigerated Truck Body Panels with 2mm Fiberglass Skins

This listing describes insulated panels for custom refrigerated and insulated truck-body projects. The listed panel thickness is 80mm, with 2mm fiberglass-reinforced plastic (FRP) skins. Panel sizes, quantities, edge details and the final material specification are confirmed against the project drawings before quotation.

Materials and Construction

• Listed panel thickness: 80mm.
• Listed skin thickness: 2mm fiberglass-reinforced plastic (FRP).

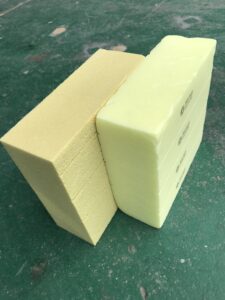

• Regular insulation core: extruded polystyrene (XPS).
• Bonding: white adhesive, with the final construction agreed for the project.

Polyurethane construction is a higher-cost option subject to order-volume review and is not offered for small-quantity orders. Availability must be confirmed before quotation. Other thickness requirements should be submitted for review rather than assumed to be standard stock.

Panel Selection and Body Design

Please identify the intended wall, roof, door or floor application and provide the required dimensions and drawings. Reinforcement, edge connections, openings and matched components must be reviewed for the complete body design. Panel weight depends on dimensions, materials and construction; no single weight or load rating is stated for all panels.

Insulated panels do not provide cooling on their own. Cargo temperature performance depends on the completed body, refrigeration unit and operating conditions. Select the refrigeration unit against the body dimensions, cargo and target temperature; a complete-system temperature result is not a panel temperature rating.

Information for Your Quote

Send the panel dimensions and quantity, body drawings if available, intended use, cargo type, target temperature, required openings or reinforcement and delivery destination. Tell us any required certificates or test documents before order confirmation so that their availability can be checked. Final materials, components and price are confirmed in the quotation.
