Great 4.2m Standard Aumark Refrigerated Truck Body with Side Door & Double Rear Doors

✅ Detailed Refrigerated Truck Body Description

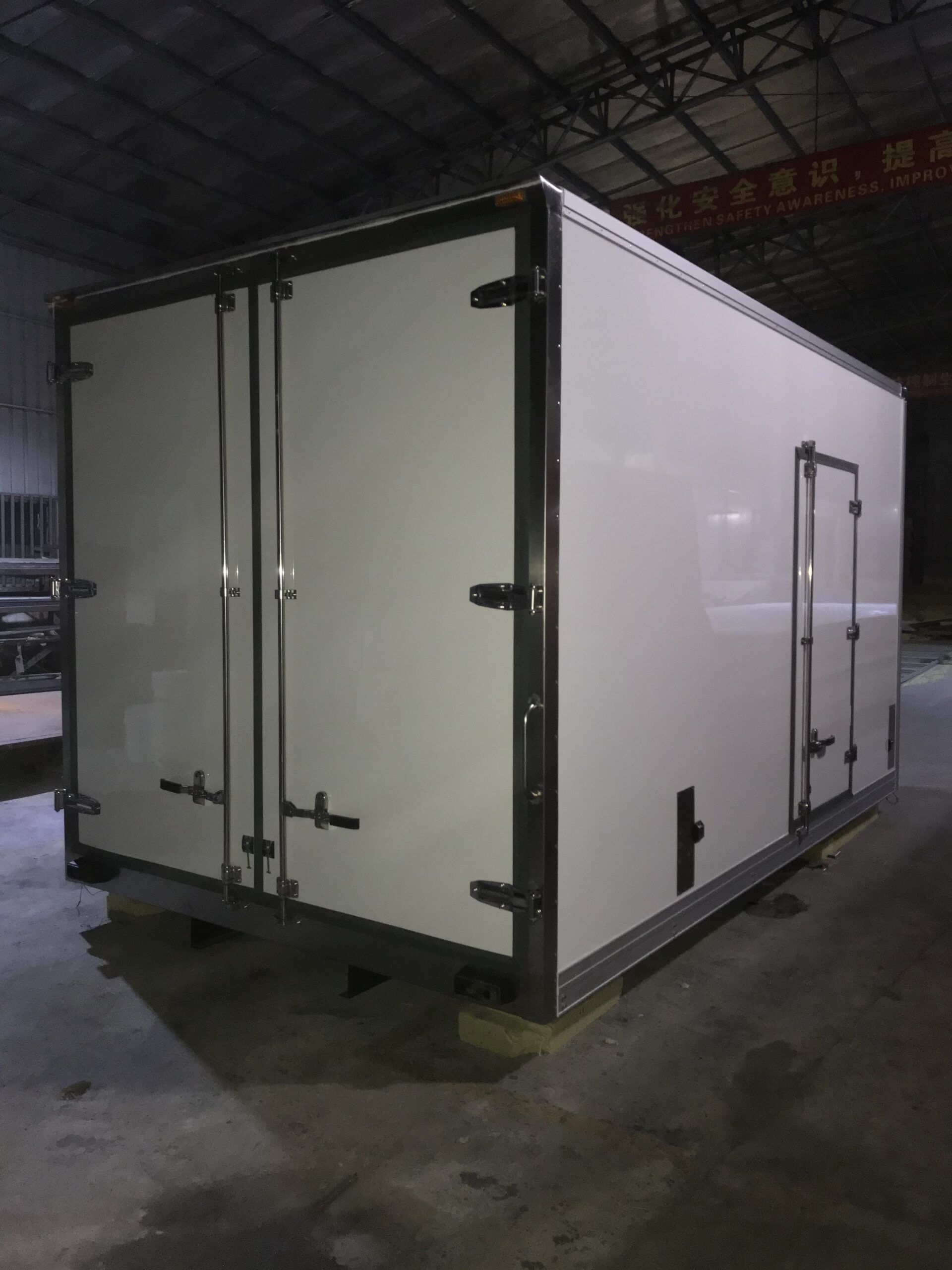

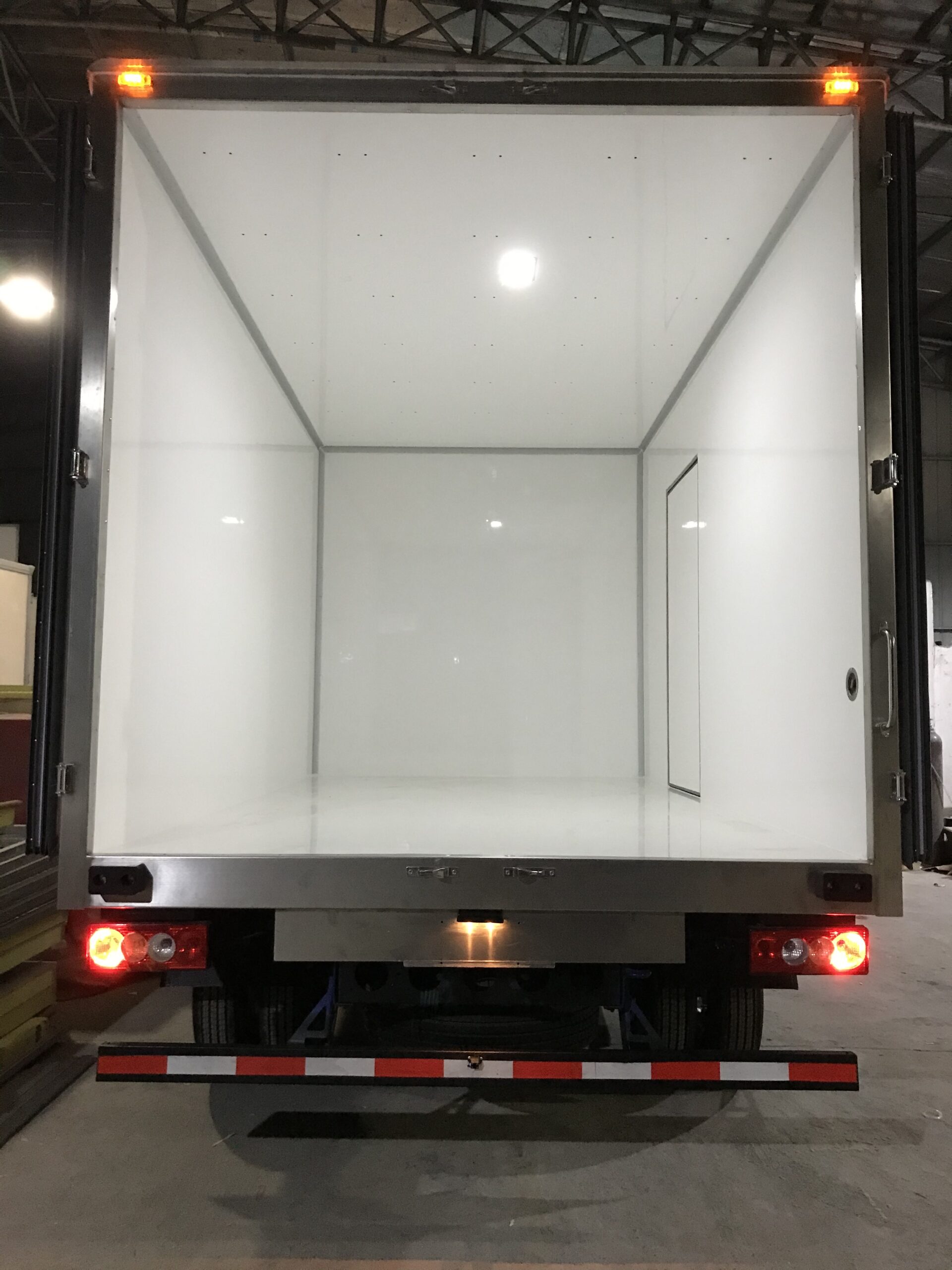

The 4.2-meter Aumark refrigerated truck body is engineered for reliable performance in urban and regional cold chain logistics. Designed to fit standard Isuzu light-duty truck chassis, it offers a balance of thermal efficiency, durability, and practical cargo access. The standard model comes with a side access door for fast loading/unloading and double rear doors for full-width rear access.

The box body is constructed using high-density extruded polystyrene (XPS) insulation panels, typically 80mm thick, sandwiched between 2mm thick fiberglass-reinforced plastic (FRP) skins on both sides. This ensures excellent thermal insulation, lightweight structure, and high strength.

✅ Technical Specifications

• External Dimensions: 4.2m (L) × Custom Width & Height (optional)

• Insulation Core: 38 kg/m³ density XPS board, 80mm thickness (customizable to 100/120mm)

• Panel Skin: 2mm thick FRP (fiberglass reinforced plastic) inner and outer layers

• Floor: Standard plywood with anti-slip surface (optional aluminum checker plate)

• Rear Doors: Stainless steel double-leaf swing doors with full-seal locking

• Side Door: One right-side access door, insulated and sealed

• Lighting: LED interior lighting included

• Drainage: Equipped with water drainage system

• Mounting: Ready for installation on Isuzu 4.2m chassis (NPR/600P or equivalent)

✅ Available Custom Options

• 🥩 Meat hanging rail system (stainless steel)

• 💨 Air circulation ducts / channels

• 🛡️ Aluminum floor plating for heavy-duty use

• 🔒 Stainless steel lock systems, hinges, door seals

• 🎨 Custom branding or logo printing

• ⚙️ Optional reefer unit integration (Thermo King, Carrier, etc.)

✅ Application Scenarios

• Frozen food delivery

• Fresh produce logistics

• Dairy or seafood distribution

• Medicine and vaccine cold chain

• Urban last-mile refrigerated transport
