Blue Insulated Truck Body with 80mm Panels for Cold Chain Transport

Blue Insulated Truck Body with 80mm Panels

This blue insulated truck body is offered for custom cold-chain transport projects. The panel thickness for this product is 80mm. Body dimensions, door layout and matched components are confirmed against the customer’s vehicle and cargo requirements before quotation.

Panel Materials and Construction

• Panel thickness: 80mm.
• Regular insulation core: extruded polystyrene (XPS).
• Panel skins: fiberglass-reinforced plastic (FRP), bonded with white adhesive.
• Polyurethane option: higher-cost polyurethane construction is subject to order-volume review and is not offered for small-quantity orders. Availability must be confirmed before quotation.

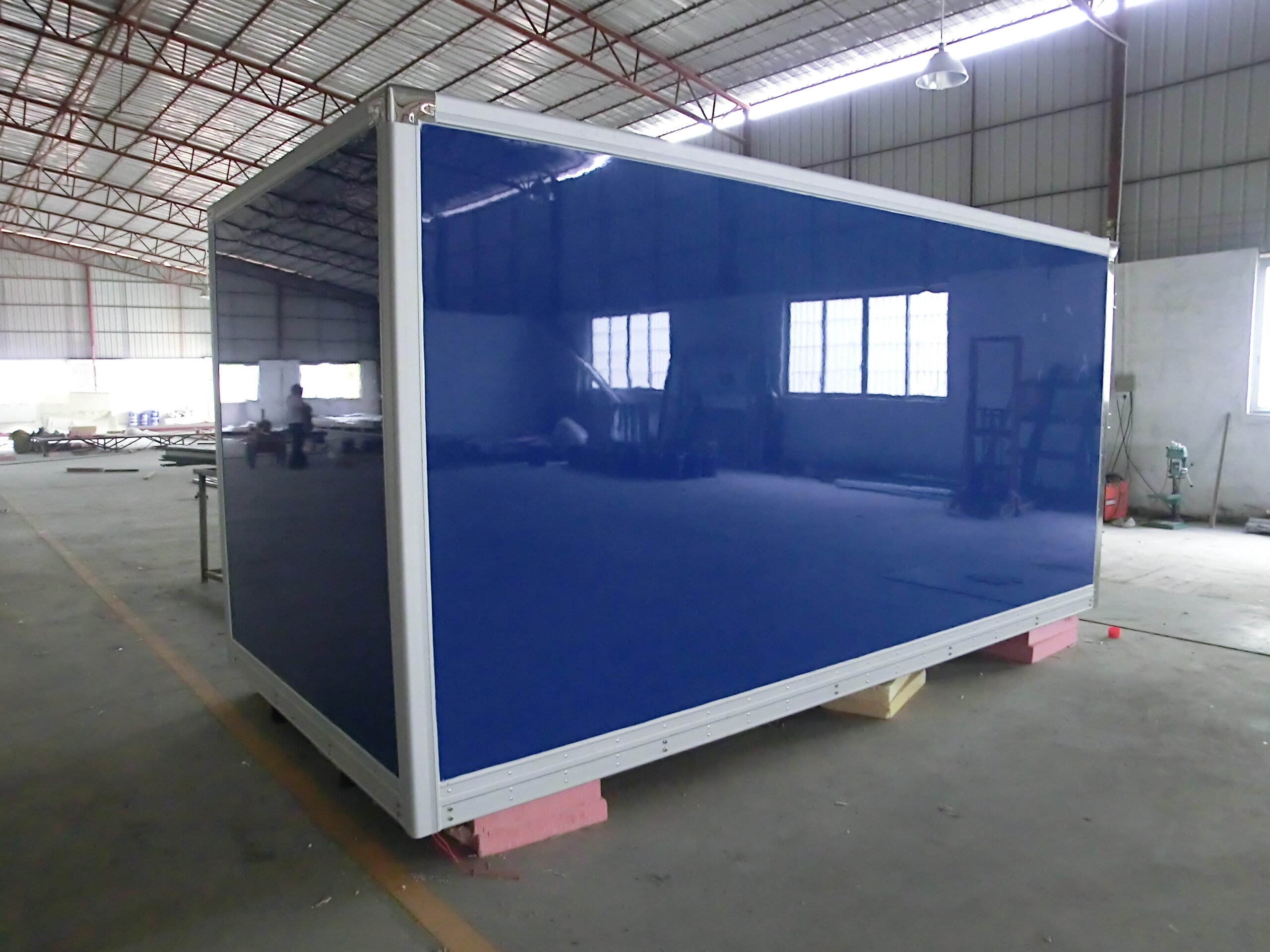

The final material specification, reinforcement and component list are agreed for each project. Photos show a body example and do not define every order’s configuration.

Refrigeration and Vehicle Matching

The insulated body does not provide cooling on its own. A refrigeration unit must be selected to match the body dimensions, cargo and target temperature. Unit selection and price vary with the project; operating performance must be confirmed for the agreed configuration and conditions.

Please provide the chassis model and mounting information so that body dimensions and installation requirements can be reviewed. Compatibility is not assumed for every truck or van.

Body Weight and Payload

Body weight depends on dimensions, panel construction, floor, doors, hardware and reinforcement. A structural frame adds weight. We do not publish a single weight or payload figure for all sizes. Allowable cargo payload must be assessed against the selected chassis and the complete vehicle configuration.

Information for Your Quote

• Vehicle or chassis model and mounting dimensions.
• Required internal and external body dimensions, with drawings if available.
• Cargo type, intended use and target temperature.
• Door layout, floor requirements, reinforcement and other components.
• Quantity and delivery destination.

Use Request a Quote to send this product with your requirements. We will review the body construction and matched refrigeration options for your project. Final configuration and price are confirmed in the quotation.
