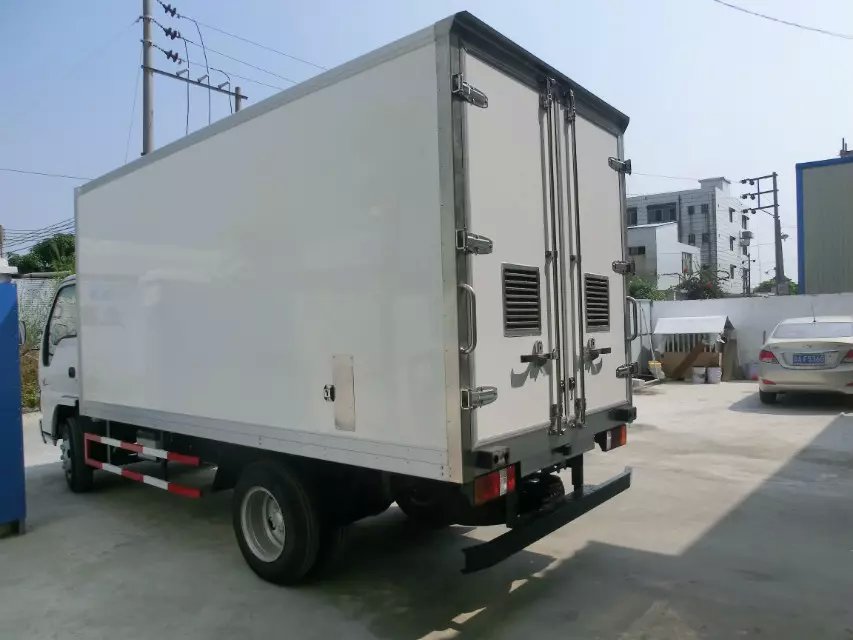

4.2m Insulated Refrigerated Truck Body with Meat Hanging Rail – Dual-Use Design

✅ Subtitle:

Custom-built for 4.2m chassis, suitable for both refrigerated and insulated transport, equipped with stainless steel meat rail system

✅ Product Description:

This 4.2-meter dual-purpose refrigerated and insulated truck body is designed for efficient cold chain transportation in urban and regional areas. It is ideal for transporting chilled meat, frozen goods, fresh produce, and other temperature-sensitive products.

The body uses high-density extruded polystyrene (XPS) as the core material, with 2mm thick fiberglass (FRP) skins on both inner and outer surfaces, providing excellent insulation and durability.

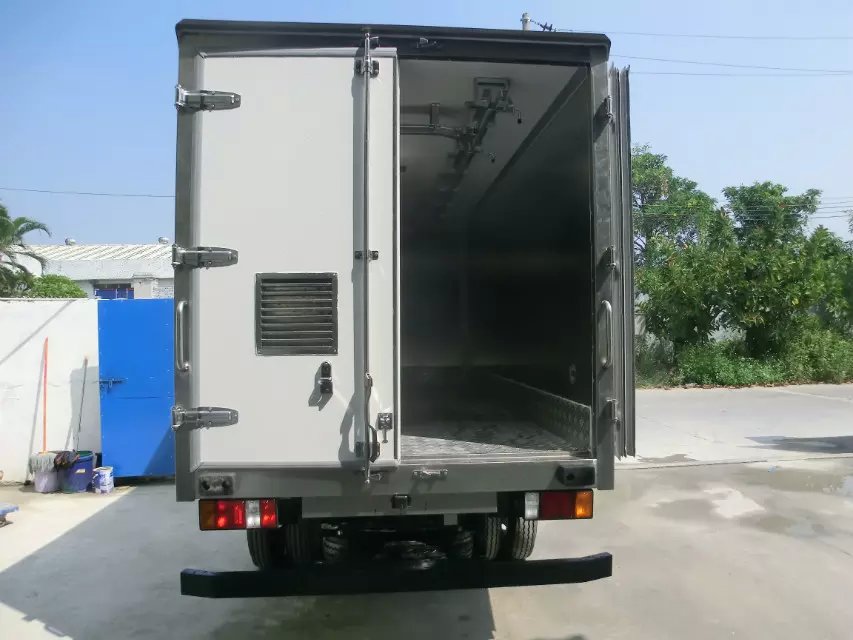

Inside, a stainless steel meat hanging rail system allows for suspended transport of whole lamb, pork, or beef. The open bottom design ensures proper airflow for consistent refrigeration. This unit supports both refrigerated and insulated applications based on your business needs.

✅ Key Specifications:

• 📏 Body Length: 4.2 meters (adjustable to fit chassis)

• ❄️ Wall Structure: 80mm thick high-density XPS board (optional 100/120mm)

• 💪 Panel Surface: 2mm FRP (Fiberglass Reinforced Plastic), inside & out

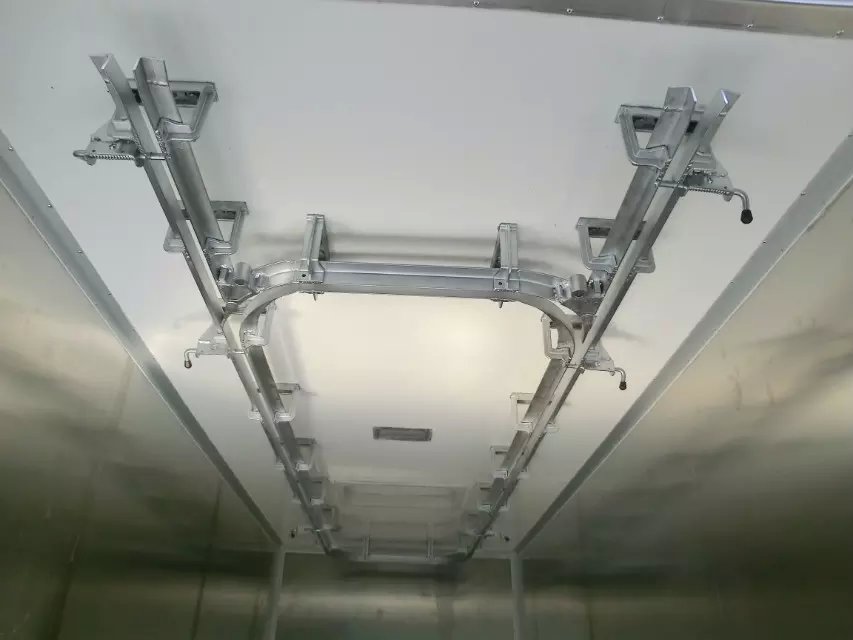

• 🥩 Meat Hanging System: Heavy-duty stainless steel rail and hooks

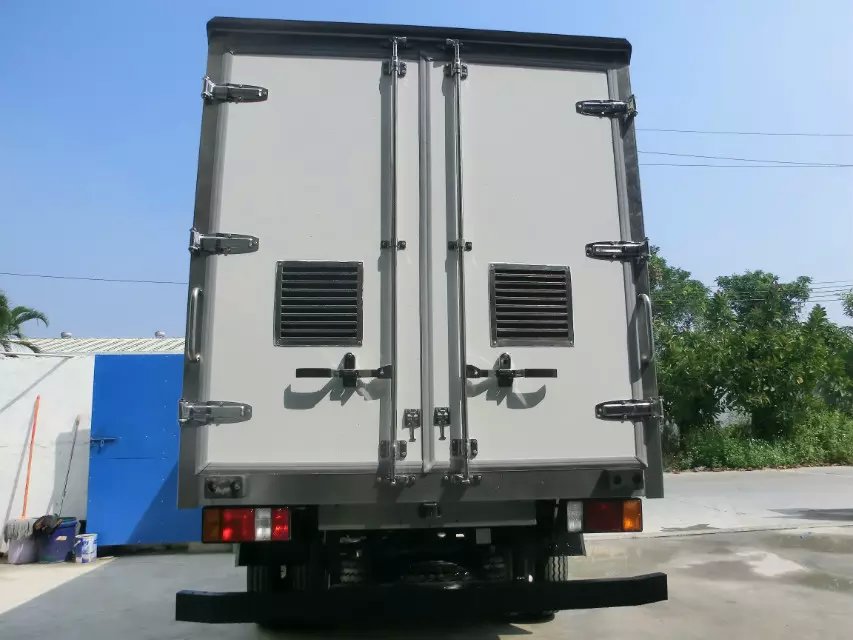

• 🚪 Door Type: Rear double doors (optional side door)

• 🧊 Temperature Range: Suitable for -18℃ to +10℃ cold transport

• ⚙️ Compatible Chassis: Isuzu, JMC, Foton, Dongfeng, etc.

✅ Optional Configurations:

• Aluminum checkered floor plate

• LED interior lighting system

• Air circulation ducts for uniform cooling

• Reinforced locks and high-seal door strips

• Custom paint or logo branding
